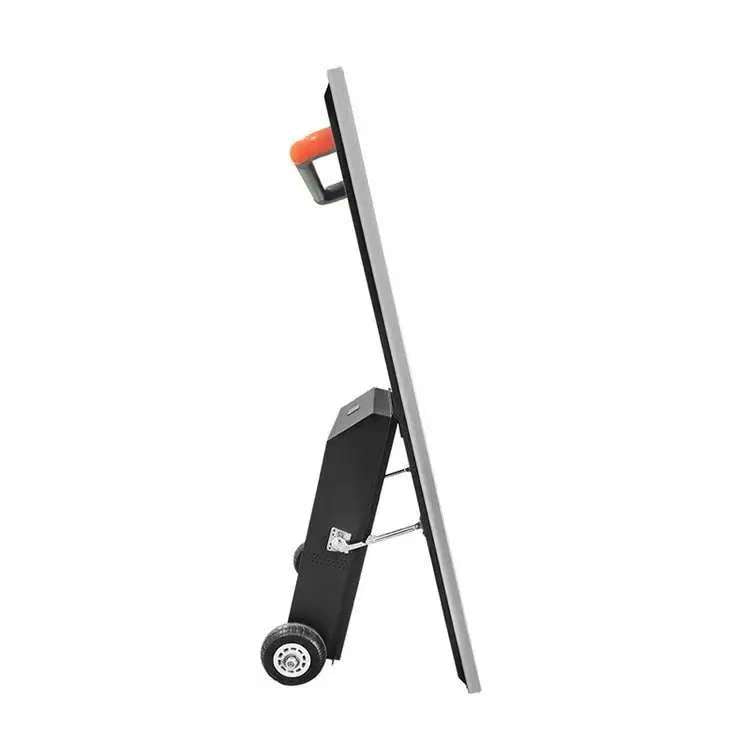

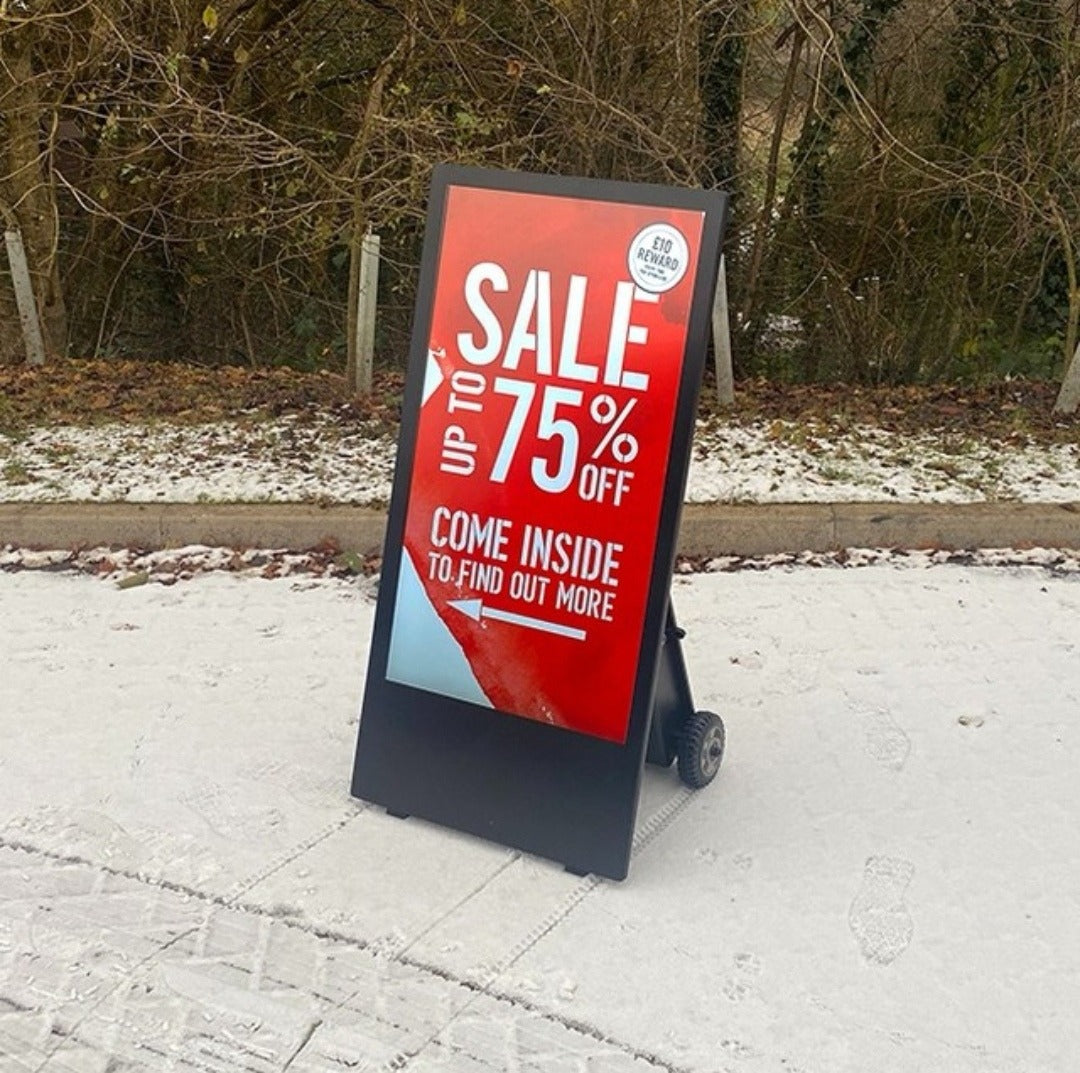

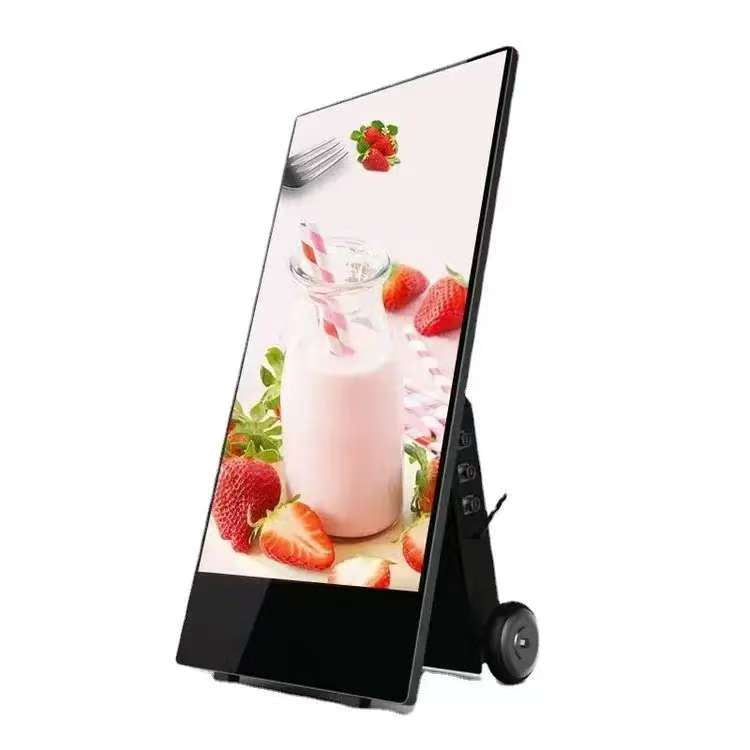

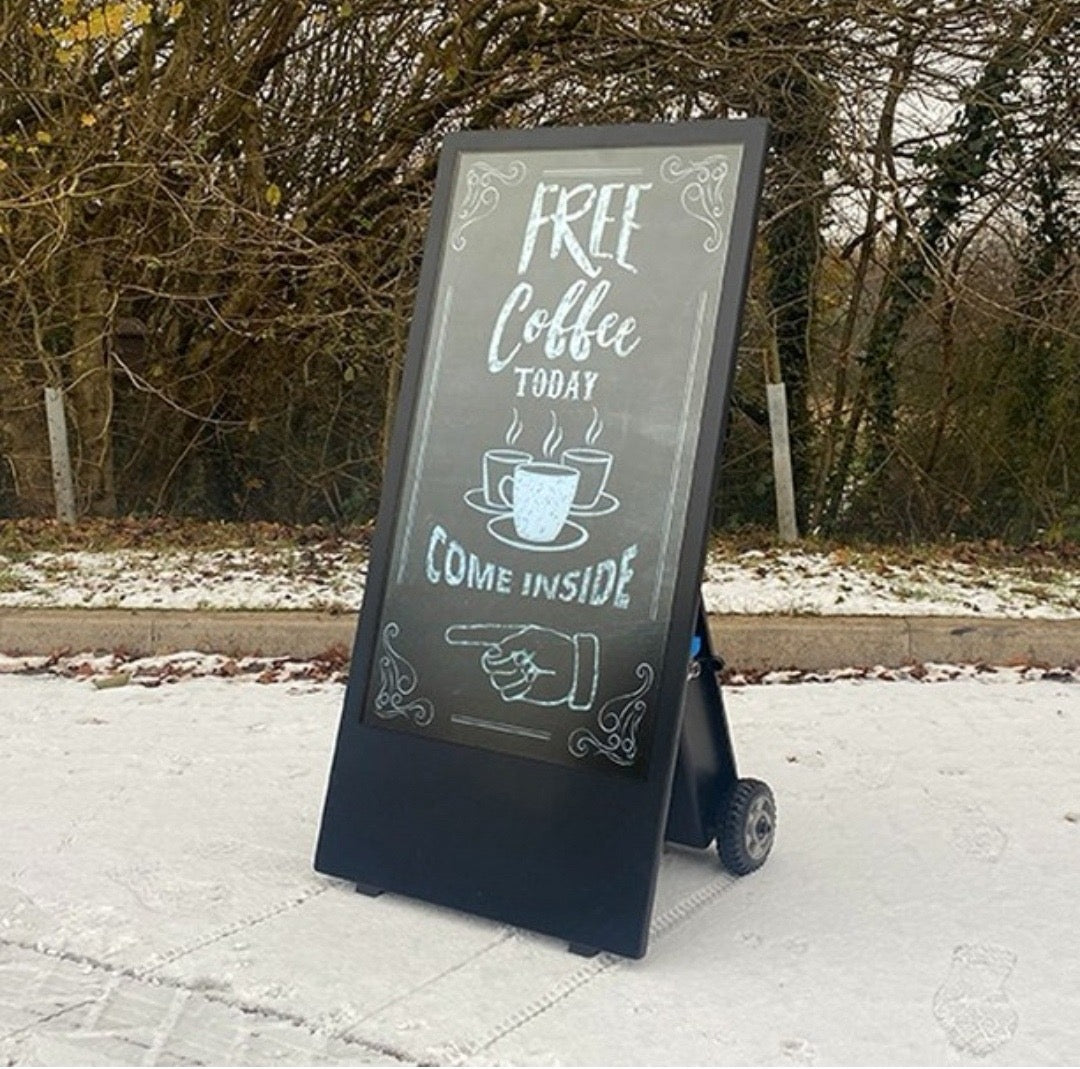

Outdoor LED Sidewalk Displays

The outdoor-rated waterproof sidewalk displays are perfect for attracting customers, showcasing offers at events, and overall brand promotion.
With eye-catching image quality our units turn heads using the most innovative
technology on the market, all while controlling content from your phone. Waterproof Outdoor Sidewalk Displays measure 1 meter tall by 0.64 meters wide.

Module Specifications:

• Pixel Pitch: 2.5mm
• Module Size: 320mm × 160mm
• Module Resolution: 128x64 dots
• Color Configuration: SMD 3in1 1R1G1B
• Pixel Density: 160000 dots/m2
• Driver Mode: 1/32 Scan

Standard Cabinet Specifications:

• Cabinet Size(WXH):  640mm W x 800mm H
• Cabinet Resolution: 256x320 Pixels /dots
• Module Quantity: 10 pcs
• Pixel Density: 160000 dots/m2
• Average Power Consumption: 200W/m2
• Max. Power Consumption: 600W/m2
• Frame Material: Iron
• Cabinet Weight: 50KG/SQM

Screen Parameters:

• Controlling System: Huidi
• Screen Size: 0.64M(w) x 0.8m(h) = 0.512SQM
• Refresh rate: 3840hz
• Power Supply: 5V 40A 110-220V
• Viewing Angle: Horizontal 140°, Vertical 140°
• Min. Viewing Distance: ≥ 2.5 meter
• Gray scale: 8192×8192×8192
• Brightness: 5000 cd/m²
• Colors: 549 Billion
• Input Voltage: AC220V/50Hz or AC110V/60Hz
• MTBF: >10,000 hours
• Life span: ≥100,000 hours

• IP rating(Front/Rear): IP65
• Temperature Operating: -10°C~60°C
• Humidity Operating: 10%~90%
