Regular price $4,985.00 CAD
Regular price Sale price $4,985.00 CAD
Shipping calculated at checkout.
  • Inventory on the way

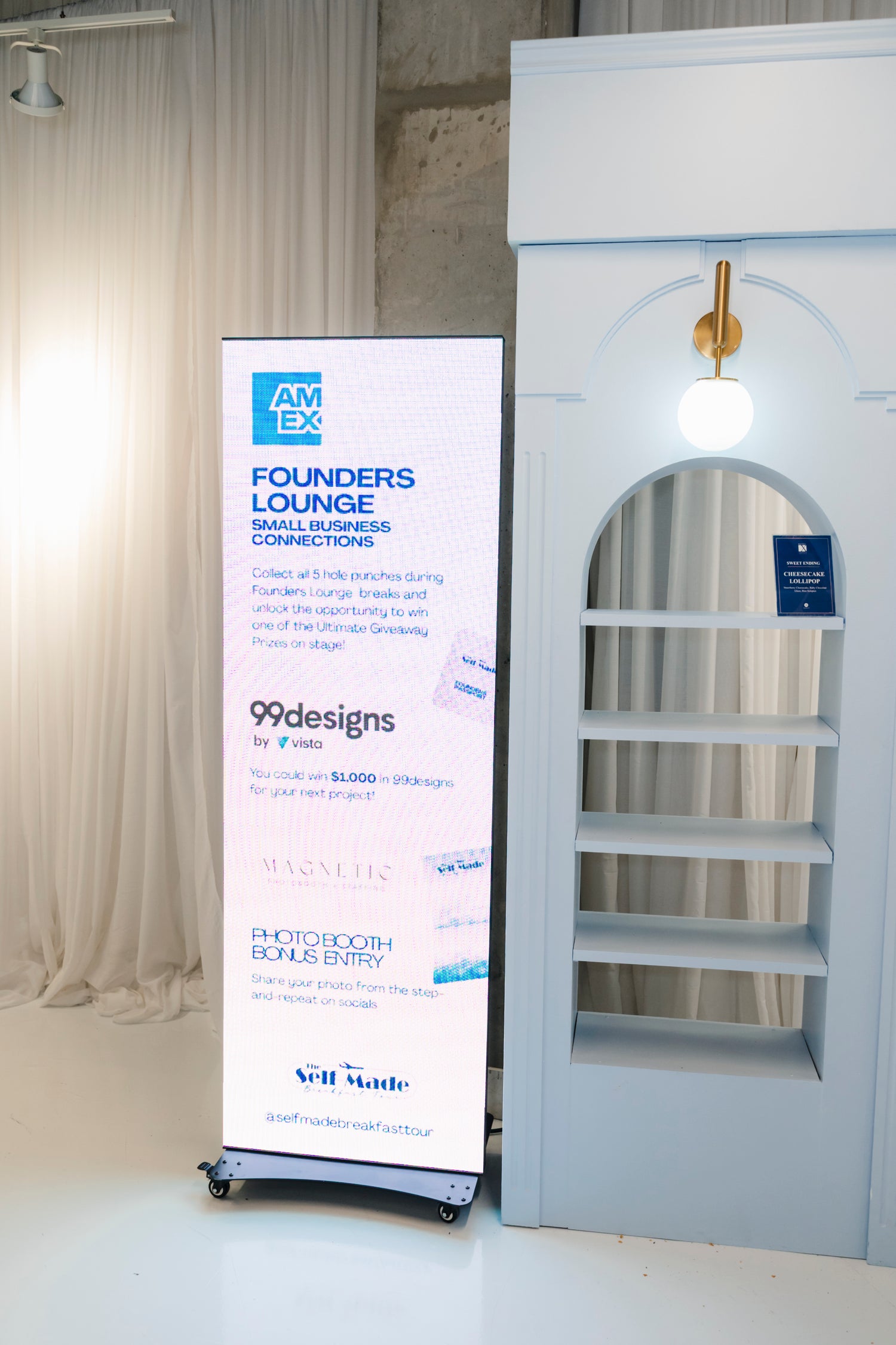

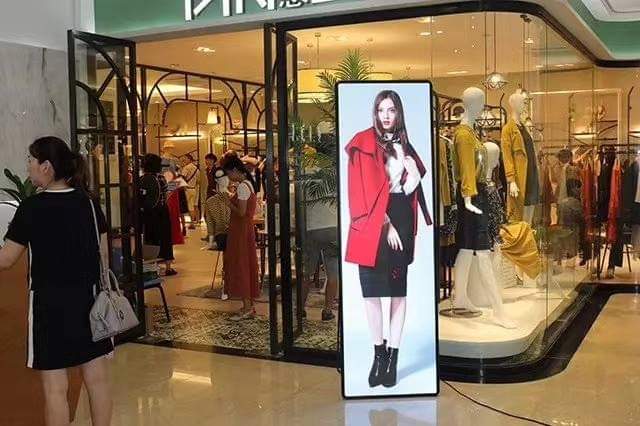

The quick connect LED retail display is perfect for events, retail storefront exposure and overall brand promotion. With eye-catching image quality, vivid colors and a creative design, our units turn heads using the most innovative technology on the market.

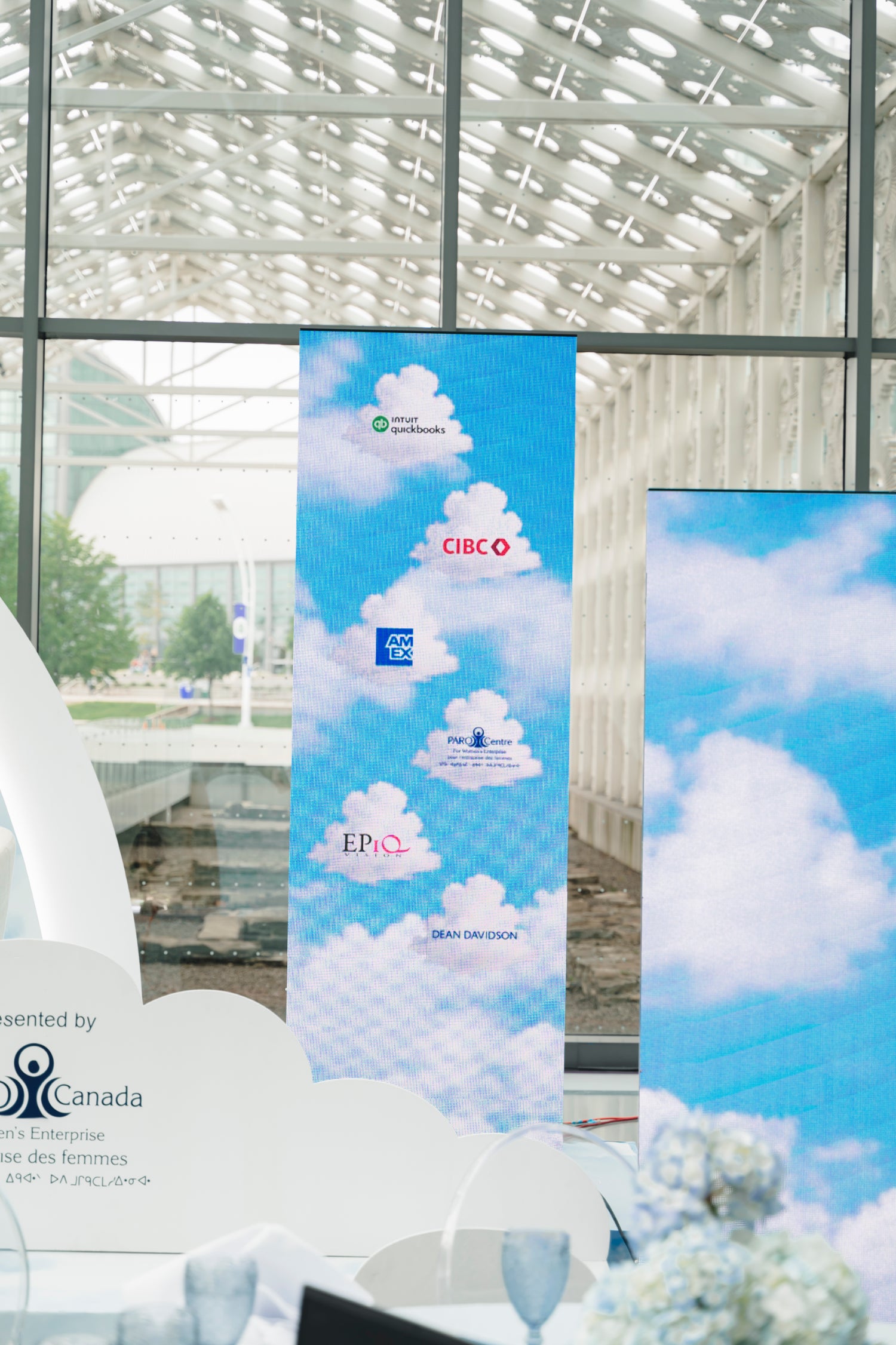

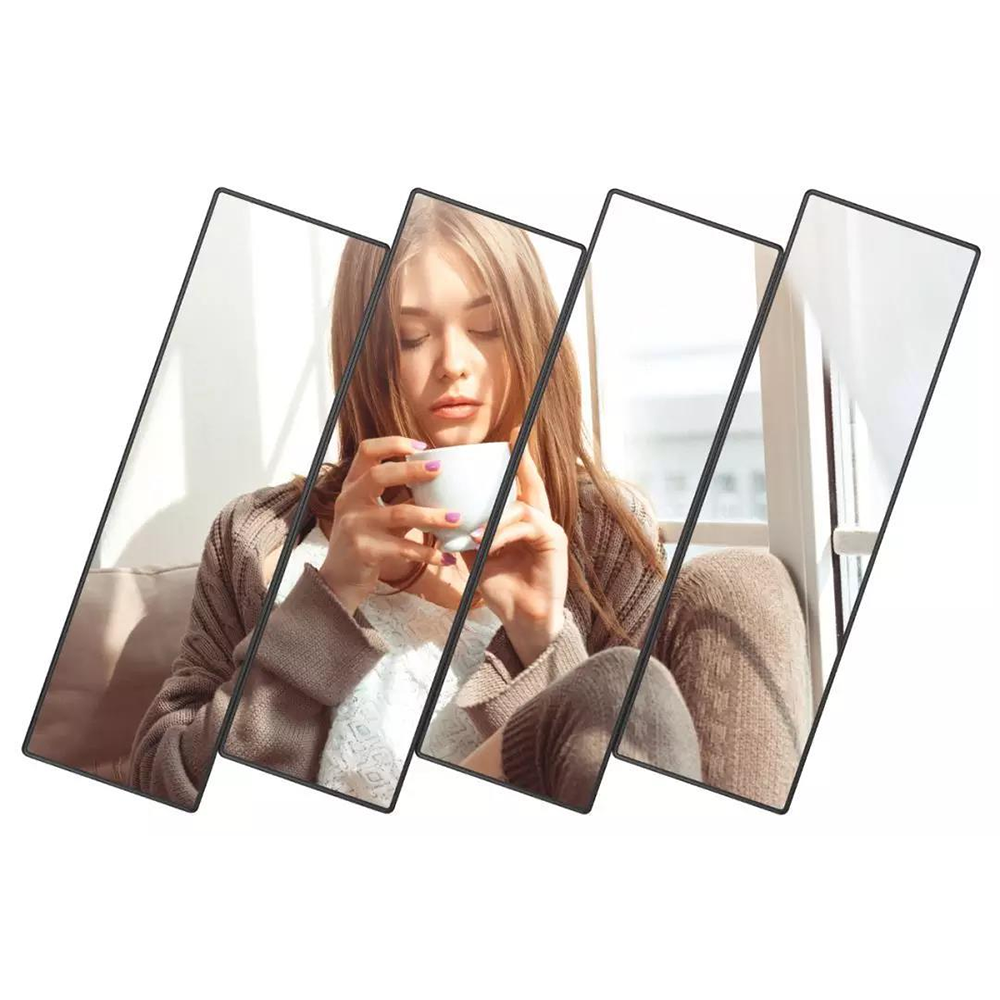

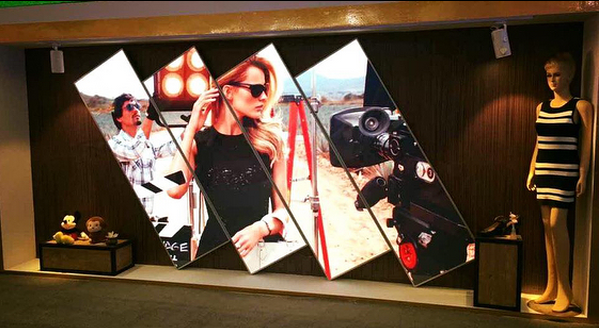

Using quick connect technology, build a seamless video wall experience for your customers with multiple screens creating endless advertising possibilities.

These high definition displays have an approximate lifespan of 100,000 hours and come with a 2 year factory warranty on parts and deficiencies +  lifetime technical / operational support through our manufacturing partner.

Module Specification:

  • Pixel Pitch: 2.5mm
  • Module Size: 320mm × 160mm
  • Module Resolution: 128x64 dots/m2
  • Color Configuration: SMD 3in1 1R1G1B
  • Pixel Density: 160000 dots/m2
  • Driver Mode: 1/32 Scan

Standard Cabinet Specification

  • Cabinet Size(WXH): 640mm W x 1920mm H
  • Cabinet Resolution: 256x768 Pixels /dots
  • Module Quantity: 24pcs
  • Pixel Density: 160000 dots/m2
  • Average Power Consumption: 200W/m2
  • Max. Power Consumption: 600W/m2
  • Frame Material: Iron
  • Cabinet Weight: 35KG/Piece

Screen Parameters

  • Screen size: 0.64m(w)x1.92m(h)
  • Cabinet Quantity:1 pcs
  • Controlling system: Huidu
  • Refresh rate: 1920hz
  • Power Supply: 5V 40A 110-220V
  • Viewing Angle: Horizontal 140° Vertical 140°
  • Min. Viewing Distance: ≥2.5 meter
  • Gray scale: 8192×8192×8192
  • Brightness: 700 cd/m²
  • Colors: 549 Billion
  • Input Voltage: AC220V/50Hz or AC110V/60Hz
  • MTBF: >10,000 hours
  • Life span: ≥100,000 hours
  • IP rating(Front/Rear): IP31
  • Temperature Operating: -10°C~60°C
  • Humidity Operating: 10%~90%
  • Certifications: CE, ROHS, ISO9001



The manufacturer’s warranty is 2 years from date of purchase. During this period, the  manufacturer will replace defective components at no charge to the purchaser. If the damage is caused by faulty or negligent operation, the purchaser will be required to pay for the cost of shipping to have unit repaired.

After the warranty period has expired, all component replacement parts will be charged at the standard replacement rate.

Technical Support

Training is provided directly by our manufacturing partners.

All operation manuals, software, and test reports are available. Any documentation related to product maintenance can be provided.
