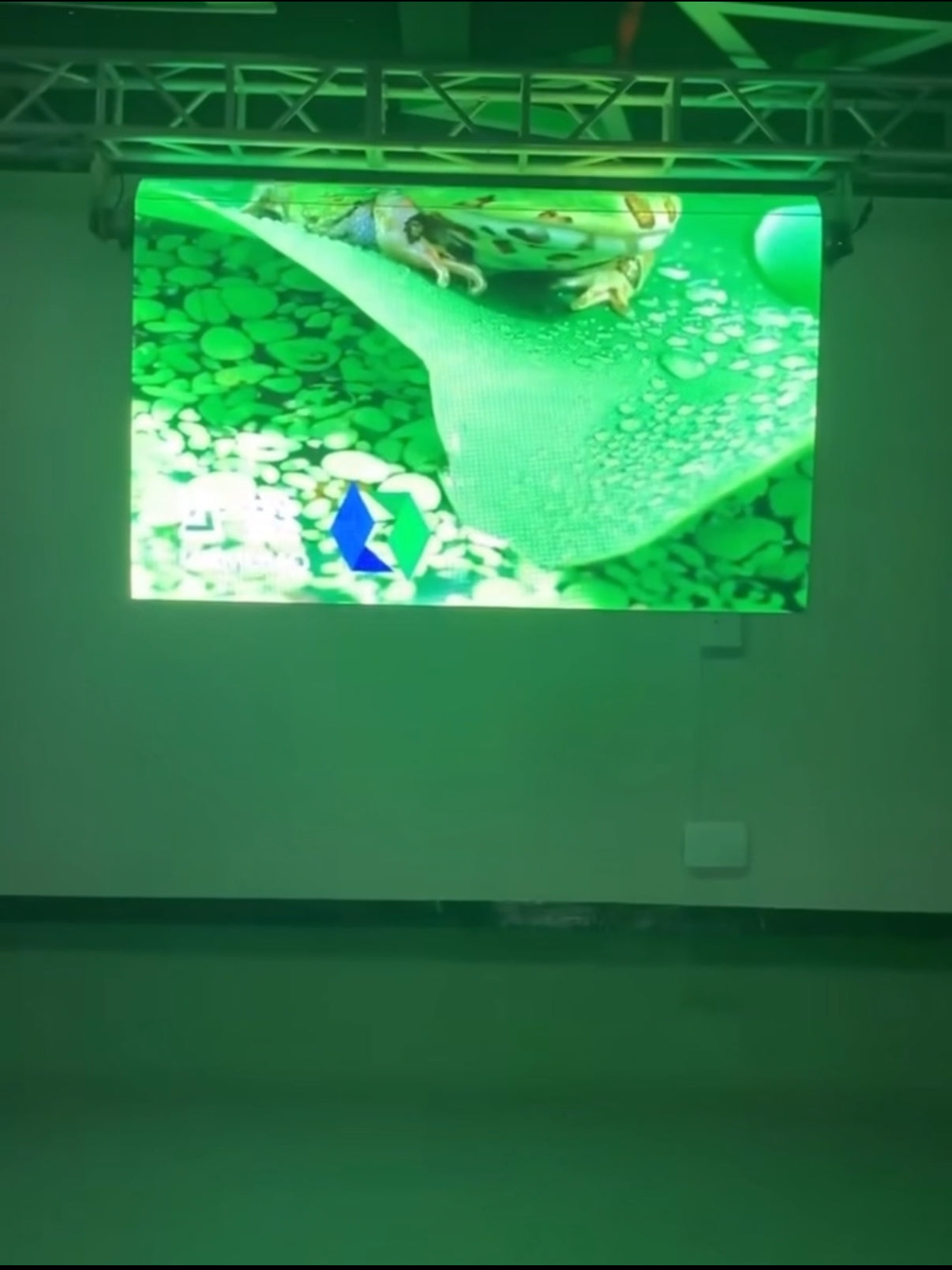

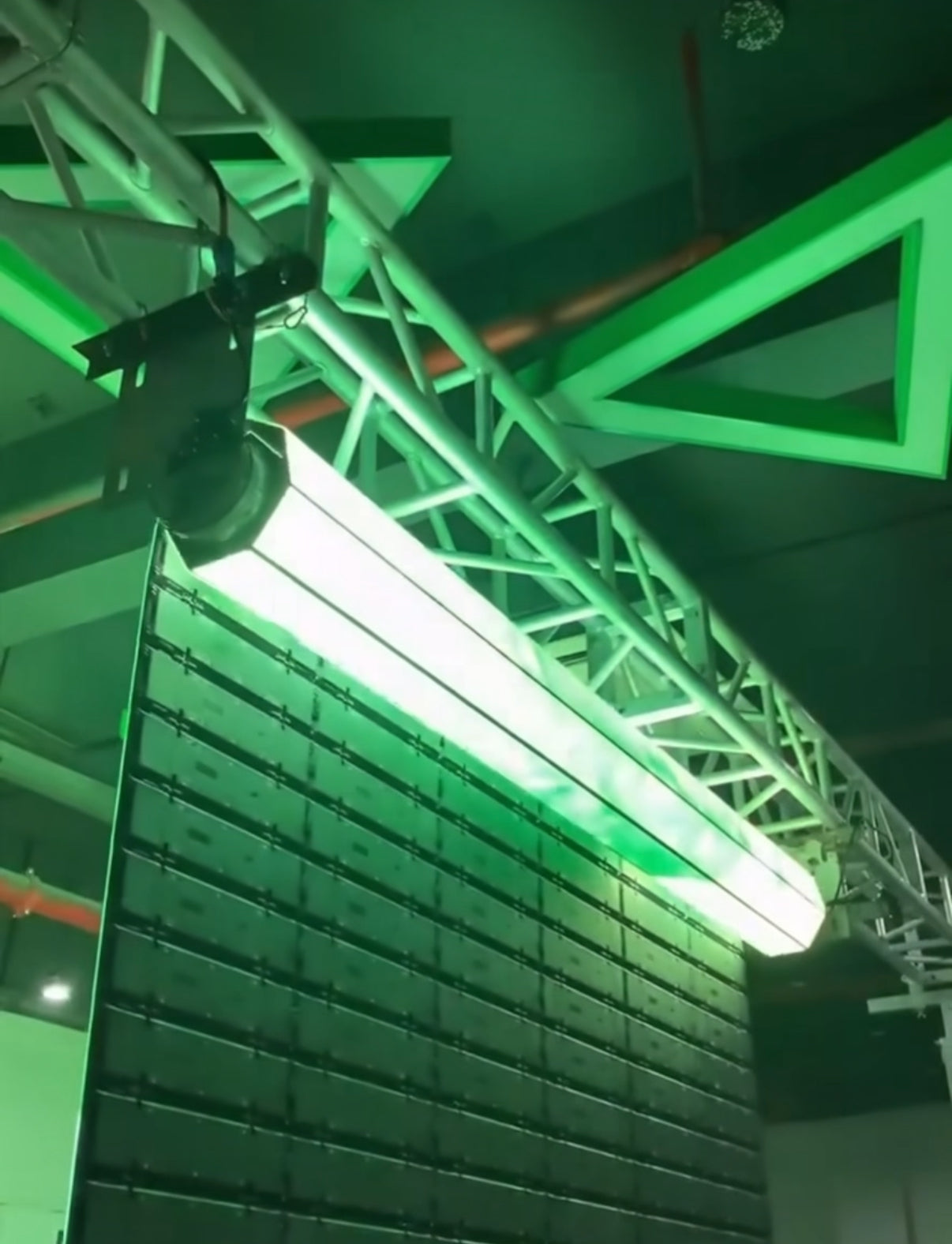

Roll Up Video Wall

The Roll Up Video Walls are perfect for placement diversity. Made with durable rollable material this video wall is designed to set up anywhere.  Level up your event with a high quality display, then simply roll it up when you are finished.  Content is controlled directly from your phone and material is sized by the square meter.

The unit is shipped in custom protective casing, has an approximate lifespan of 100,000 hours and comes with a 2 year factory warranty on parts and deficiencies + lifetime technical/operational support.

Module Specifications:

• Pixel Pitch: 3.91mm
• Module Size: 500mm × 62.5mm
• Module Resolution: 128x16 dots
• Color Configuration: SMD 3in1 1R1G1B
• Pixel Density: 65536 dots/m2
• Driver Mode: 1/16 Scan

Standard Cabinet Specifications:

• Cabinet Size(WXH):  1000mm W x 1000mm H
• Pixel Density: 65536 dots/m2
• Average Power Consumption: 200W/m2
• Max. Power Consumption: 600W/m2

• Cabinet Weight: 15KG/m2

Screen Parameters:

• Controlling System: NovaStar
• Screen Size: 1.0M(w) x 1.0m(h) = 1SQM
• Refresh rate: 3840hz
• Power Supply: 5V 40A 110-220V
• Viewing Angle: Horizontal 140°, Vertical 140°
• Min. Viewing Distance: ≥ 3 meter
• Gray scale: 8192×8192×8192
• Brightness: 800-1000 cd/m²
• Colors: 549 Billion
• Input Voltage: AC220V/50Hz or AC110V/60Hz
• MTBF: >10,000 hours
• Life span: ≥100,000 hours

• IP rating(Front/Rear): IP48/IP21 Back
• Temperature Operating: -10°C~60°C
• Humidity Operating: 10%~90%
• Certifications:  CE, ROHS, ISO9001
