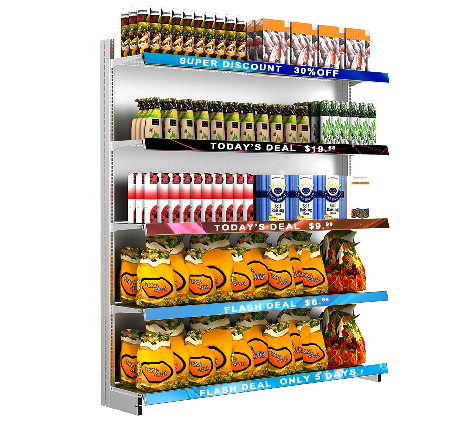

LED Shelving Display

The LED shelving display is designed to modernize in-store merchandising by transforming traditional shelf edges into dynamic digital signage. Built specifically for indoor retail environments, these ultra-slim LED displays deliver crisp visuals, vibrant colors, and real-time messaging exactly where purchasing decisions are made.

With a high-resolution 1.25mm pixel pitch and wide viewing angles, LED shelving displays ensure pricing, promotions, and brand messaging remain highly visible across aisles. Controlled through NovaStar systems, multiple shelving units can be managed simultaneously, allowing retailers and brands to deploy synchronized campaigns or update individual shelves instantly.

Whether used for promotions, pricing highlights, or brand storytelling, LED shelving displays create a seamless, scalable digital shelf experience that enhances engagement and drives sales at the point of purchase.



---





Module Specifications:





• Pixel Pitch: 1.25mm

• Module Size: 300mm × 56.25mm

• Module Resolution: 240 × 45 dots

• Color Configuration: SMD 3in1 1R1G1B

• Pixel Density: 640,000 dots/m²

• Driver Mode: 1/64 Scan





---





Cabinet Specifications:





• Cabinet Size (W × H): 600mm (W) × 60mm (H)

• Cabinet Resolution: 480 × 45 dots

• Module Quantity: 2 pcs

• Pixel Density: 640,000 dots/m²

• Average Power Consumption: 15W

• Max. Power Consumption: 5W

• Material: Aluminum

• Cabinet Weight: 0.7kg / piece





---





Screen Parameters:





• Screen Size: 600mm (W) × 56.25mm (H)

• Cabinet Size: 600mm (W) × 60mm (H)

• Cabinet Quantity: 1 pcs

• Controlling System: NovaStar

• Refresh Rate: 3840Hz (adjustable)

• Viewing Angle: Horizontal 140° / Vertical 140°

• Minimum Viewing Distance: ≥1.25 meters

• Gray Scale: 8192 × 8192 × 8192

• Brightness: ≥600 cd/m²

• Colors: 549 Billion

• Input Voltage: 24V DC

• MTBF: >10,000 hours

• Life Span: ≥100,000 hours

• IP Rating (Front/Rear): IP54 / IP31

• Operating Temperature: -10°C ~ 60°C

• Operating Humidity: 10% ~ 90%

• Source Compatibility: AV, DVI, HDMI, SDI, S-Video, DP

• Certifications: CE, CCC, ROHS, ISO9001

• Warranty: 2 Years
