Foldable LED Event Display

The foldable window display is perfect for on-the-go advertising. Showcase offers at events, utilize window or wall space in your storefront, all while controlling content directly from your phone. This display measures 0.96 meters tall by 0.64 meters wide and comes with both front and back mounting options.

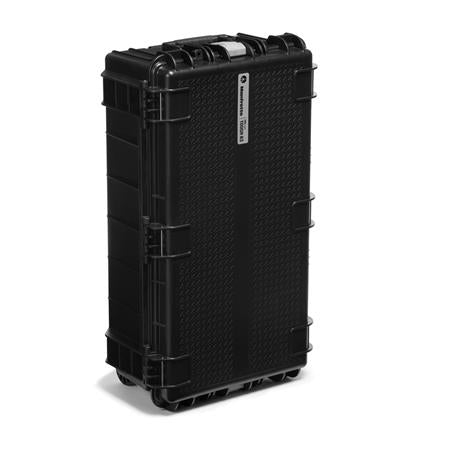

Units are shipped in a custom suitcase-like protective case, have an approximate lifespan of 100,000 hours and come with a 2 year factory warranty on parts and deficiencies +  lifetime technical / operational support.

Module Specifications:

• Pixel Pitch: 1.8mm
• Module Size: 320mm × 160mm
• Module Resolution: 172x86 dots
• Color Configuration: SMD 3in1 1R1G1B
• Pixel Density: 288369 dots/m2
• Driver Mode: 1/42 Scan

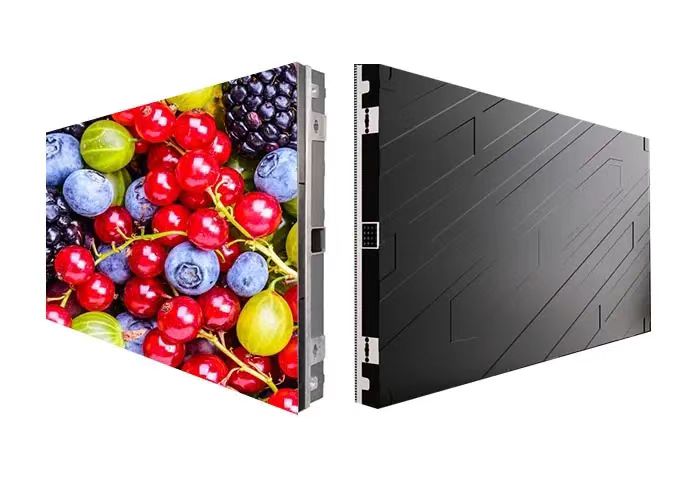

Standard Cabinet Specifications:

• Cabinet Size(WXH):  640mm W x 480mm H
• Cabinet Resolution: 344x516 Pixels /dots
• Module Quantity: 10 pcs
• Pixel Density: 288369 dots/m2
• Average Power Consumption: 200W/m2
• Max. Power Consumption: 600W/m2
• Frame Material: Aluminum
• Cabinet Weight: 10KG/Display

Screen Parameters:

• Controlling System: NovaStar
• Screen Size: 0.64M(w) x 0.48m(h) = 0.3072SQM
• Refresh rate: 3840hz
• Power Supply: 5V 40A 110-220V
• Viewing Angle: Horizontal 140°, Vertical 140°
• Min. Viewing Distance: ≥ 1.8 meter
• Gray scale: 8192×8192×8192
• Brightness: 800-1200 cd/m²
• Colors: 549 Billion
• Input Voltage: AC220V/50Hz or AC110V/60Hz
• MTBF: >10,000 hours
• Life span: ≥100,000 hours

• IP rating(Front/Rear): IP48 Front
• Temperature Operating: -10°C~60°C
• Humidity Operating: 10%~90%
