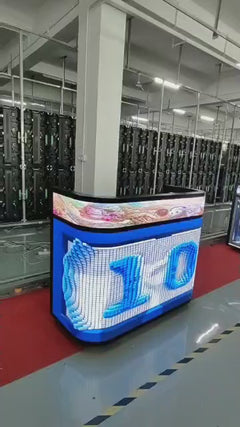

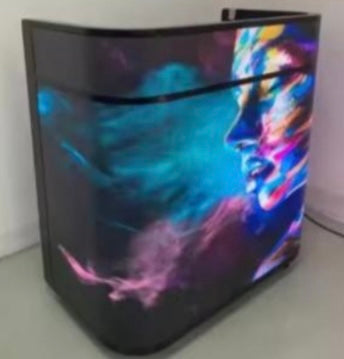

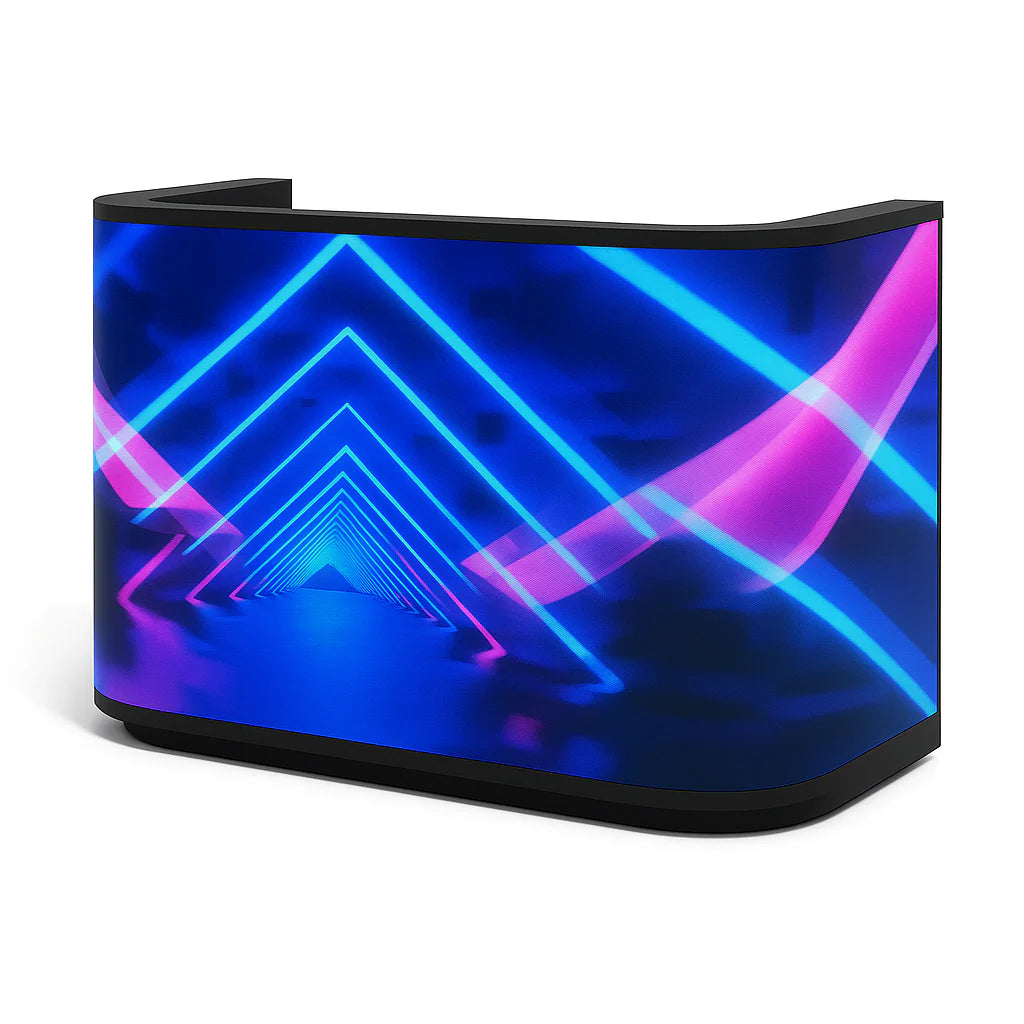

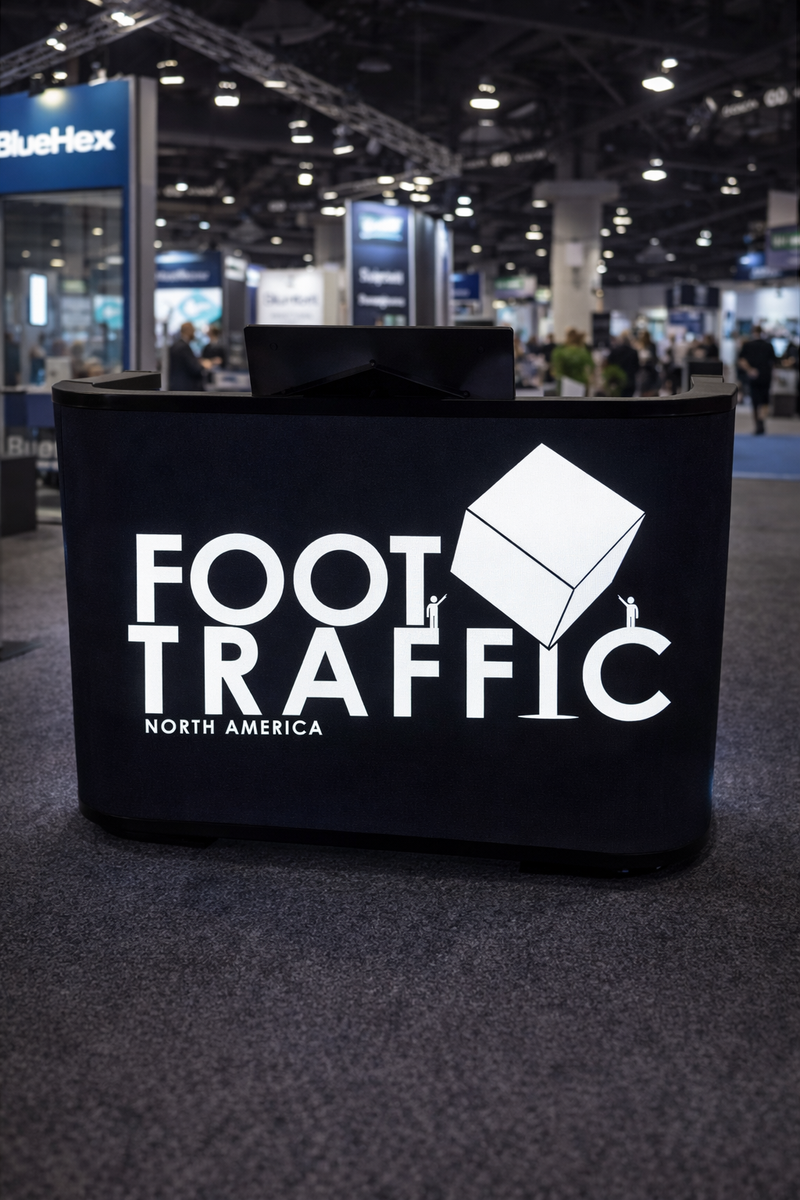

The LED booth display is the ultimate attention-grabbing display for events, exhibitions, pop-ups and branded activations. Built using GOB-protected LED panels for durability and pristine image quality, this booth transforms your space into a fully immersive digital experience.

Featuring ultra-sharp 1.8mm pixel pitch, deep contrast, and vivid colour reproduction, the LED TradeShow Booth brings your brand to life with motion graphics, product highlights, sponsor reels, or interactive content.

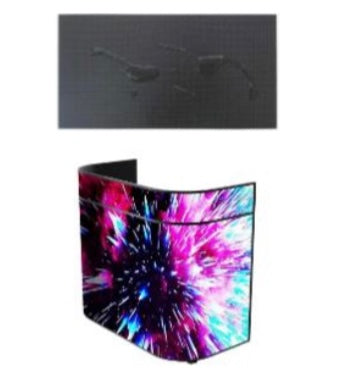

Its modular cabinet design allows for fully customized shapes—straight, curved or wrap-around—making it one of the most flexible and impactful LED booth solutions on the market.

Engineered for portability and built to withstand trade show abuse, this booth setup delivers seamless visuals, fast installation, and long-lasting performance you can rely on. With a high-refresh Novastar control system, industry-leading brightness, and a rugged IP65 (front) coating, this unit is ready for any indoor event environment.

Module Specifications

Pixel Pitch: 1.86mm
Module Size: 320mm × 160mm
Color Configuration: SMD 3-in-1 (1R1G1B)
Module Resolution: 172 × 86 dots
Pixel Density: 288,369 dots/m²
Driver Mode: 1/43 Scan
Weight (per module): 0.4 kg

Cabinet Specifications

Cabinet Size (W × H): Customizable
Cabinet Resolution: 1204 dots × 516 dots
Module Quantity: Customizable
Pixel Density: 288,369 dots/m²
Average Power Consumption: 200 W/m²
Max. Power Consumption: 600 W/m²
Material: Iron
Cabinet Weight: 110 kg/piece

Screen Parameters

Screen Size: 2240mm (W) × 960mm (H)
Screen Resolution: 1204 × 516 (621,264 pixels)
Cabinet Quantity: 1 piece
Controlling System: Novastar
Refresh Rate: 3840 Hz
Power Supply: 5V 40A, 110–220V
Viewing Angle: Horizontal 140° / Vertical 140°
Minimum Viewing Distance: ≥1.8 meters
Gray Scale: 8192 × 8192 × 8192
Brightness: ≥600 cd/m²
Colors: 549 Billion
Input Voltage: AC220V/50Hz or AC110V/60Hz
MTBF: >10,000 hours
Life Span: ≥100,000 hours
IP Rating (Front/Rear): IP65 (Front) / IP31 (Rear)
Operating Temperature: -10°C to 60°C
Operating Humidity: 10%–90%
Source Compatibility: AV, DVI, HDMI, SDI, S-Video, DP, etc.
Certifications: CE, CCC, ROHS, ISO9001
Warranty: 2 Years
