Interactive Touch Floor Panels

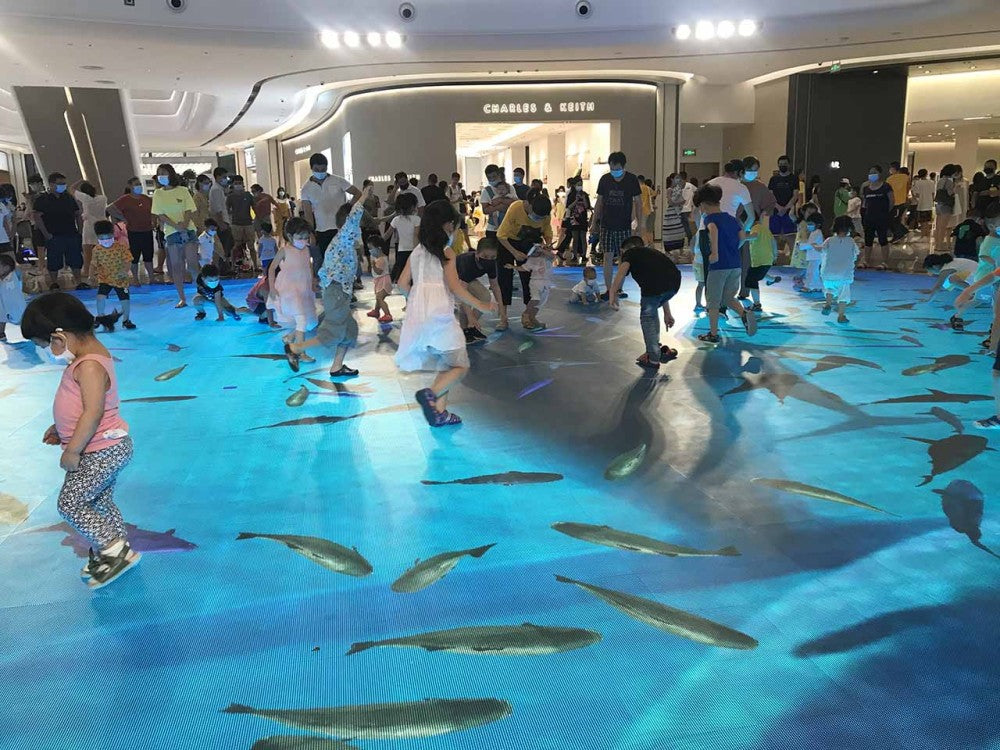

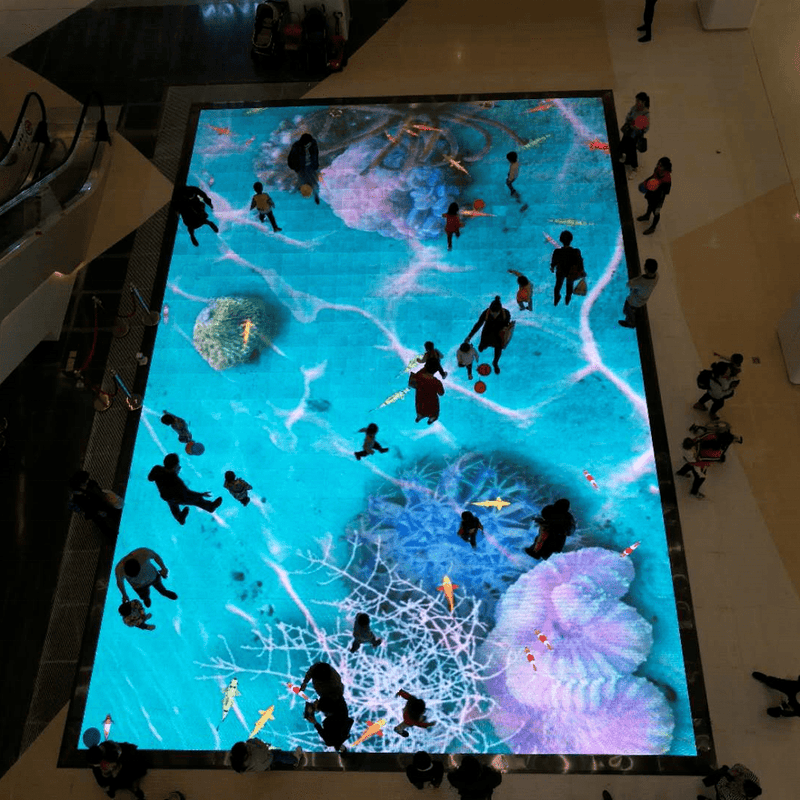

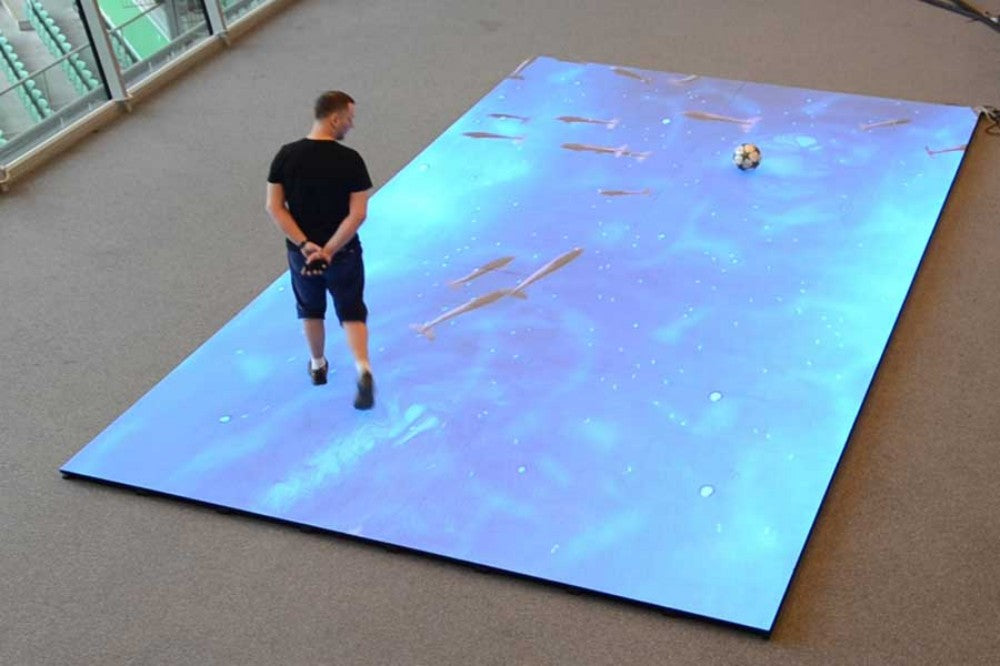

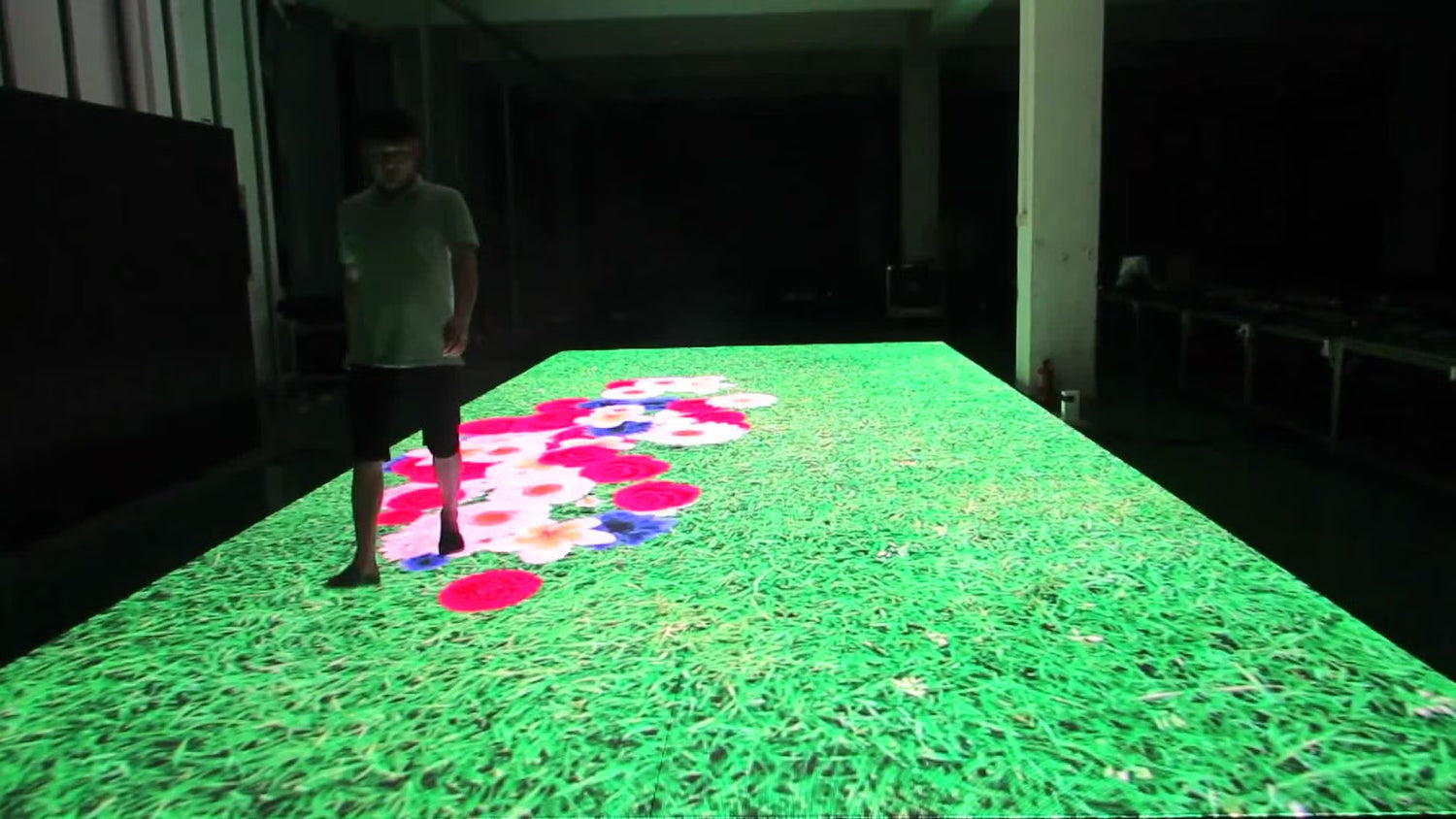

Touch screen floor panels are perfect for revolutionary projects. Create an interactive experience at events, a unique activation at venues or an overall viral opportunity for your brand, all while controlling content directly from your computer.  These panels measure 0.5 meters long by 1.0 meter wide and sync together using HDMI.

Panels are shipped in custom protective casing, have an approximate lifespan of 100,000 hours and come with a 2 year factory warranty on parts and deficiencies + lifetime technical/operational support.

Module Specifications:

• Pixel Pitch: 2.976mm
• Module Size: 250mm × 250mm
• Module Resolution: 84x84 dots
• Color Configuration: SMD 3in1 1R1G1B
• Pixel Density: 112896 dots/m2
• Driver Mode: 1/28 Scan

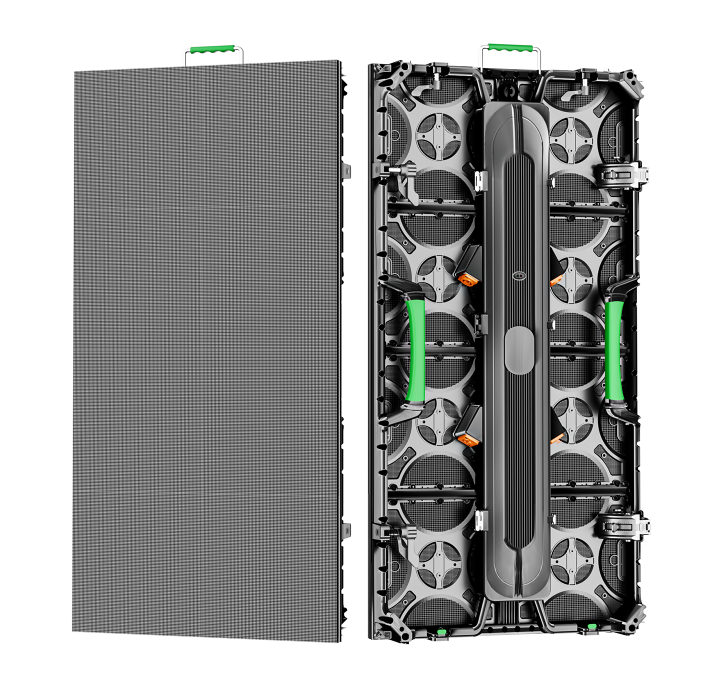

Standard Cabinet Specifications:

• Cabinet Size(WXH):  500mm W x 1000mm H
• Cabinet Resolution: 168x336 Pixels /dots
• Module Quantity: 2 pcs
• Pixel Density: 112896 dots/m2
• Average Power Consumption: 400W/m2
• Max. Power Consumption: 800W/m2
• Frame Material: Iron
• Cabinet Weight: 50KG/m2

Screen Parameters:

• Controlling System: NovaStar
• Screen Size: 0.64M(w) x 0.48m(h) = 0.3072SQM
• Refresh rate: 1920-3840hz
• Power Supply: 5V 40A 110-220V
• Viewing Angle: Horizontal 140°, Vertical 140°
• Min. Viewing Distance: ≥ 2.96 meter
• Gray scale: 8192×8192×8192
• Brightness: 1200-2500 cd/m²
• Colors: 549 Billion
• Input Voltage: AC220V/50Hz or AC110V/60Hz
• MTBF: >10,000 hours
• Life span: ≥100,000 hours

• IP rating(Front/Rear): IP43 Front
• Temperature Operating: -10°C~60°C
• Humidity Operating: 10%~90%
